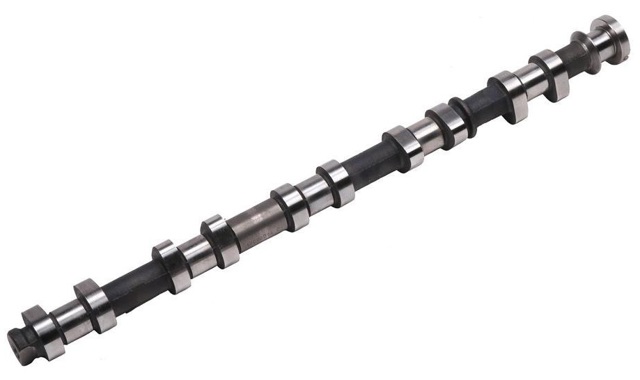

Распредвал двигателя впускной на Hummer H3
Фото из каталога Автопро
Автозапчастина під замовлення, ціна без доставки, уточнювати по доставці
Через 27 дней, Киев ()
199.43 USD
-5%
VIPro
Отвечает в течение 5 минут
MRIDE
Магазин в г. Киев
Откроется в ВТ в 09:00
Пн–Пт 09:00–18:00
Сб–Вс выходной
Нашли ошибку совместимости запчасти с автомобилем? Сообщите о ней нашим специалистам.
Для этой запчасти продавцы также используют описания -
распредвал двигателя, впускной
распредвал двигателя, впускной
Схема применения Распредвал двигателя впускной для Hummer H3 () (2005 - 2024)
ENGINE ASM-3.5L L5 PART 2 CYLINDER HEAD & RELATED PARTS (L52/3.5-6)
| Номер | ОЕМ | Наименование запчасти | |
|---|---|---|---|
| 102 | 03522352 | PIN,CYL HD LOC(HOLLOW DOWEL,15.675X28,CHAM BOTH ENDS,SAE 12L14,ZP) | |
| 130 | 24100061 | SPROCKET,CR/SHF | |
| 200 | 19168846 | HEAD,CYL (W/VLVS)(HEAD)(INCLS 216-219,224,225,911)(REMANUFACTURED-NOT FOR SALE WHERE IMPORTS ARE RESTRICTED) | |
| 204 | 24576975 | VALVE,EXH(STD) | |
| 204 | 12569015 | VALVE,EXH(.075 O.S.)(**VPI 1-877-846-8243) | |
| 205 | 12569014 | VALVE,INT(.075 OVSI)(**VPI 1-877-846-8243) | |
| 205 | 24576974 | VALVE,INT(STD) | |
| 206 | 01647544 | PLUG,CYL HD ACC HOLE(M24X1.5X12)(ROUND HEAD,INT HEX,W/SEAL,NYLON)(0.034) | |
| 207 | 11519306 | BOLT,CYL HD(-HFH,M6X1X88.3,17 THD,14.2 OD,10.9,4435M,MACH,6194M,HDR-PT) | |
| 208 | 12572638 | ADJUSTER,HYD VLV LASH(ACDelco #HL129) | |
| 209 | 12596994 | SEAL,VLV STEM OIL | |
| 210 | 12596078 | SPRING,VLV | |
| 211 | 90537243 | RETAINER,VLV SPR | |
| 212 | 90354648 | KEY,VLV STEM | |
| 213 | 24100294 | ARM,VLV RKR | |
| 214 | 11519306 | BOLT,CYL HD(-HFH,M6X1X88.3,17 THD,14.2 OD,10.9,4435M,MACH,6194M,HDR-PT) | |
| 214 | 11609709 | BOLT,CYL HD(M11X2X145, 34 THD,25 OD, 10.9,) | |
| 215 | 12625058 | SPARK PLUG,GAS ENG IGN(SPARK PLUG IS PRE-GAPPED,DO NOT CHANGE)(ACDelco #41-103)(IRIDIUM) | |
| 216 | 12569484 | PLUG,SECD AIR INJN PIPE HOLE(12.7MM) | |
| 217 | 11562125 | PLUG,CYL HD WAT JKT HOLE(PART OF 200)(22.6 OD)(3.675) | |
| 218 | 11609916 | PLUG,CYL HD OIL GAL(REAR(PART OF 200)(M14X1.5X21.5) | |
| 219 | 24577307 | PLUG,CYL HD OIL GAL(FRONT(PART OF 200) | |
| 220 | 24577380 | GUIDE,TMG CHAIN(TOP OF ENGINE) | |
| 221 | 11589305 | BOLT,HFH, M6X1X48, 21.55 THD, 14.2 OD, 8.8, GMW3359, REDUCED BODY(TMG CHAIN GDE) | |
| 222 | 24100364 | CAMSHAFT,INT(MCHG) | |
| 223 | 24100366 | CAMSHAFT,EXH(MCHG) | |
| 224 | 12570816 | BOLT,CM/SHF BRG CAP(EXHAUST CAM THRUST)(PART OF 200)(M6X1.0X39.2) | |
| 226 | 12581569 | ACTUATOR,CM/SHF POSN(ACDelco #12581569) | |
| 227 | 24100263 | BOLT,CM/SHF POSN ACTR(M10X1.5X103MM) | |
| 228 | 24100362 | SPROCKET,CM/SHF(INCL PIN) | |
| 229 | 12565425 | BOLT,CM/SHF SPKT(M10X1.5-6GX59MM MATERIAL:MEDIUM CARBON ALLOY STL.) | |
| 230 | 12571725 | CHAIN,CM/SHF TMG(ACDelco #12571725) | |
| 231 | 12568766 | SHOE,TMG CHAIN TENSR | |
| 232 | 11518161 | BOLT,HFH W/SHLDR,M8X1.25X30.5,11.45 THD,17OD,9.8,PL,MACH,6194M,MAT-PT(TMG CHAIN TENSR SHOE) | |
| 233 | 12575159 | GUIDE,TMG CHAIN(FIXED LH) | |
| 234 | 11519038 | BOLT,HFH,M6X1X30,24 THD,13.2 OD,10.9,GMW3359, W/ADHESIVE ON THREADS(CYL HD) | |
| 235 | 12598504 | TENSIONER,TMG CHAIN(ACDelco #12598504) | |
| 236 | 11518138 | BOLT,HFH,M8X1.25X30,25.65 THD,14 OD,9.8,4435M,MACH,HDR-PT(TMG CHAIN TENSR) | |
| 313 | 12601050 | SENSOR,ENG COOL TEMP(MATING CONN USE 13580114)(3.682)(ACDelco #213-4233) | |
| 421 | 12615873 | VALVE,CM/SHF POSN ACTR SOL(MATING CONN W/LEADS USE 13580114) | |
| 422 | 11517518 | BOLT,HFH,M6X1X20,17.9 THD,14.2 O.D.,9.8,TIN ZN(A/C CMPR & CNDSR HOSE)(ACDelco #11517518) | |
| 422 | 19333511 | ADHESIVE,THREADLOCKER(VIBRA-TITE 121)(MEDIUM STRENGTH)(BLUE)(20 OZ(BAL CHAIN GDE)(ACDelco #10-2023) | |
| 518 | 12591996 | COVER,CM/SHF(INCLS 519,520,922,940)(INCLS SEAL, BAFFLE, SEALER, NUT, INSULATOR, BOLT, CAP, GASKET) | |
| 519 | 12615912 | INSULATOR,CM/SHF CVR BOLT(PART OF 518)(INCLS BOLT,GROMMET) | |
| 520 | 12591633 | GASKET KIT,CM/SHF CVR(PART OF 518)(*KIT1) | |
| 521 | 12573337 | CAP,OIL FIL(SAE 5W30, NON-VENTED, SEAL)(INCLS 906)(ACDelco #FC208) | |
| 700 | 19300921 | MODULE,ELEK IGN CONT(W/BOOT)(INCLS 2-4)(CONN USE 15306431 W/LEADS)(ACDelco #19300921) | |
| 702 | 88894174 | BOOT,SPLG(INCLS 701)(PART OF 700,701)(W/SPRING) | |
| 703 | 12584079 | SENSOR,CM/SHF POSN(EXHAUST)(W/ANGLE CONNECTOR)(ACDelco #213-1557) | |
| 704 | 11561026 | BOLT,HFH,THD,14.2 OD,9.8,GMW3200,MACH,HDR-PT(CM/SHF POSN SEN) | |
| 710 | 12584516 | SENSOR,CM/SHF POSN(INTAKE)(ACDelco #213-1649) | |
| 711 | 11517518 | BOLT,HFH,M6X1X20,17.9 THD,14.2 O.D.,9.8,TIN ZN(A/C CMPR & CNDSR HOSE)(ACDelco #11517518) | |
| 711 | 19333511 | ADHESIVE,THREADLOCKER(VIBRA-TITE 121)(MEDIUM STRENGTH)(BLUE)(20 OZ(BAL CHAIN GDE)(ACDelco #10-2023) | |
| 906 | 12593348 | SEAL,OIL FIL CAP(O RING)(PART OF 521)(27.94MM INNER DIAM)(ACDelco #12593348) | |
| 911 | 11562125 | PLUG,CYL HD WAT JKT HOLE(PART OF 200)(22.6 OD)(3.675) | |
| 912 | 11519038 | BOLT,HFH,M6X1X30,24 THD,13.2 OD,10.9,GMW3359, W/ADHESIVE ON THREADS(CYL HD) | |
| 922 | 11504978 | NUT, U-TYPE M6X1 PNLS 13.5 DEEP ZOR(PART OF 518) | |
| 925 | 88958974 | SEAL,IGN COIL(PART OF 1)(ACDelco #88958974) | |
| 941 | 24577193 | GASKET,SECD AIR INJN PIPE CVR(*KIT1)(ACDelco #219-351) | |
| 942 | 12574378 | COVER,SECD AIR INJN PIPE | |
| 943 | 11518994 | STUD,SECD AIR INJN PIPE CVR(3.671) | |
| KIT1 | 88984219 | GASKET KIT,CYL HD(INCLS INTAKE AND EXHAUST MANIFOLD GASKET)(INCLS 201,520,940,941)(NOTE:"KIT NO LONGER INCLUDES VALVE STEM SEALS") |
